Dilute Phase Pneumatic Conveying Ejector Pump for Powder Transfer

Name: Dilute Phase Pneumatic Conveying Ejector Pump for Powder Transfer
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: PJP-1、PJP-2、PJP-3
Availability: InStock

Detalles del producto

Place of Origin: China

Nombre de la marca: Hengcheng

Certificación: ISO Patent Certificate High-Tech Product Certificate

Model Number: PJP-1、PJP-2、PJP-3

Pago y términos de envío

Minimum Order Quantity: 1 set

Precio: Negociable

Packaging Details: Standard shipping packaging

Delivery Time: 90 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5 sets\month

Consiga el mejor precio

Detalles del producto

Descripción de producto

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                dilute phase pneumatic conveying pump, powder transfer ejector pump, pneumatic powder conveying system


Product Name:	Pneumatic conveying ejector pump	Type:	Ejector conveying pump
Conveying materials:	Powder, granular material	Working pressure:	0.1-0.3 MPa (adjustable, low pressure requirement for dilute phase)
Purpose:	pneumatic conveying	Applicable Fields:	Power Plant And Cement Plant
Conveying Materials:	Cement, raw materials, fly ash, hydrated lime, slag powder	Compressed Air Source:	Roots blower
Applications:	Industry, Metallurgy, Building Materials	Use To:	Material Conveying

Product Name:	Pneumatic conveying ejector pump
Type:	Ejector conveying pump
Conveying materials:	Powder, granular material
Working pressure:	0.1-0.3 MPa (adjustable, low pressure requirement for dilute phase)
Purpose:	pneumatic conveying
Applicable Fields:	Power Plant And Cement Plant
Conveying Materials:	Cement, raw materials, fly ash, hydrated lime, slag powder
Compressed Air Source:	Roots blower
Applications:	Industry, Metallurgy, Building Materials
Use To:	Material Conveying

Dilute Phase Pneumatic Conveying Ejector Pump for Powder Transfer

Product Description
Dilute Phase Pneumatic Conveying Ejector Pump is a key equipment in pneumatic conveying systems designed for dilute phase applications. Its core principle relies on fluid kinetic energy transfer to achieve material transportation, making it widely used in industries such as chemical, food, pharmaceuticals, and mining.

The Dilute Phase Pneumatic Ejector Pump uses high-speed airflow (typically 15-30 m/s) to transport materials in a suspended state within the pipeline, featuring a solid gas ratio <15:1 and working pressure typically ≤ 0.3 MPa.

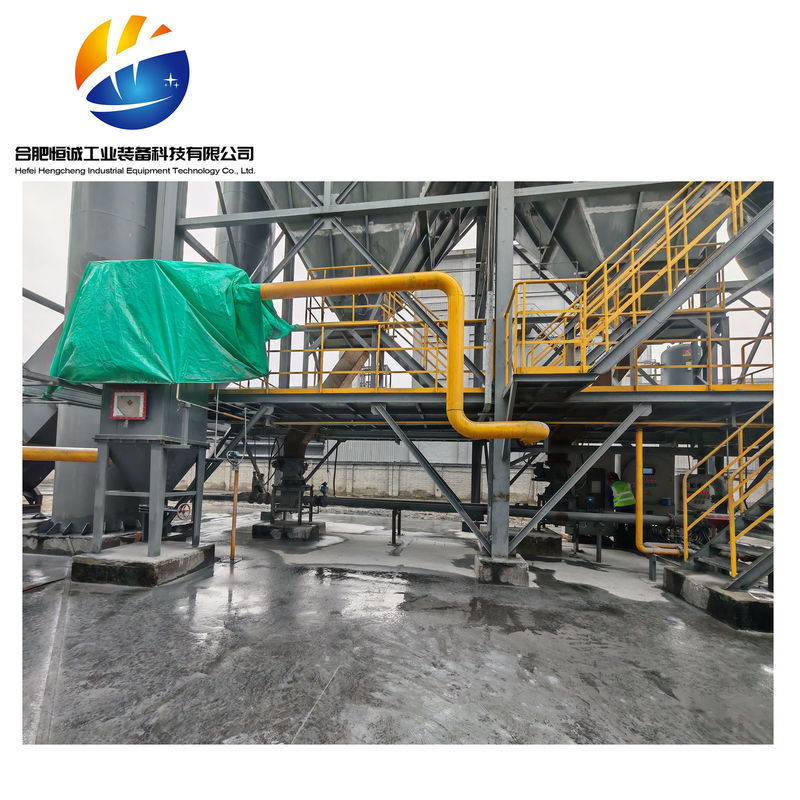

When installed at the bottom of a silo (warehouse), the PJP jet pump pneumatic conveying system utilizes material pressure for transportation. Changes in material height within the silo directly affect conveying speed, making capacity dependent on material height. When equipped with a locking device, material conveying capacity is determined by the locking device's capacity.

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Specifications	PJP-1	PJP-2	PJP-3
Conveying Material Pipe Diameter	3～6	7～10	12～16
Delivery Volume (t/h)	1～9	10～40	41～80

Application Area

The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, continuous pneumatic conveying equipment ideal for medium-distance transportation with moderate volume requirements. Widely used in building materials, chemicals, electricity, grain, metallurgy, and casting industries. Suitable for conveying cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

Key Features

Automatically controlled pneumatic conveying device
Compact structure with reliable performance
Simple maintenance and long service life
Low investment cost with minimal moving parts (only materials and air)
Fully enclosed system design when connected to dust removal device
Provides completely dust-free working environment
